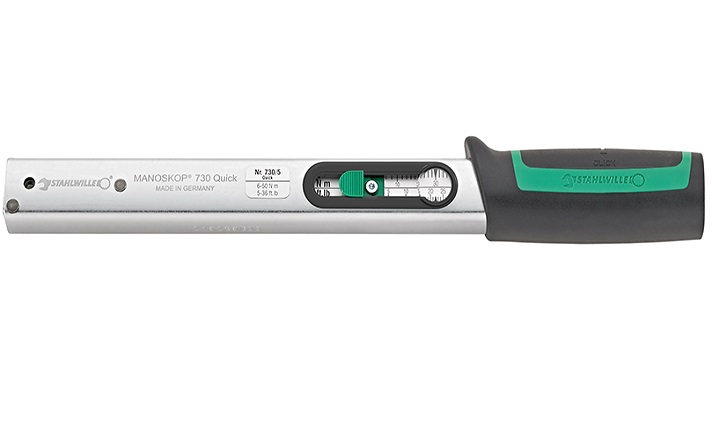

達威力STAHLWILLE可換頭型機械式扭力扳手 730 Quick系列
730 Quick -- Basic wrenches with tool carrier for insert tools
click-type
mount for interchangeable insert tools
QuickRelease safety lock
rapid setting by easy to operate locking lever inside the handle, ergonomically designed, non-slip adjusters with a thumb recess and magnifying glass integrated into the window
optimised convex handle for strain-free working
dual stop signal
twin scales N•m/ft•lb and N•m/in•lb
the measuring element is only under load while force is being applied, no need for manual reset to zero
can be applied for either clockwise or anticlockwise tightening by turning the inserts over
any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
with certificate
display deviation value ± 4%
|
|
訂貨號
|
型號
|
公制范圍
|
英制范圍
|
公制刻度
|
英制刻度
|
開口
mm
|
b
mm
|
h
mm
|
L
mm
|
LF
mm
|
SF
mm
|
R
g
|
|
50184002
|
2
|
4-20 N·m
|
|
0.5 Nm
|
|
9x12
|
27,5
|
23,6
|
179
|
157,2
|
17,5
|
315
|
|
50584002
|
a/2
|
30-175 in·lb
|
|
5 in·lb
|
|
9x12
|
27,5
|
23,6
|
179
|
157,2
|
17,5
|
315
|
|
50584001
|
a/2-1
|
17.5-87.5inlb
|
|
2.5 in·lb
|
|
9x12
|
27,5
|
23,6
|
179
|
157,2
|
17,5
|
315
|
|
50184004
|
4
|
8-40 N·m
|
|
1 N·m
|
|
9x12
|
27,5
|
23,6
|
223
|
200,8
|
17,5
|
395
|
|
50584004
|
a/4
|
70-350 in·lb
|
|
10 in·lb
|
|
9x12
|
27,5
|
23,6
|
223
|
200,8
|
17,5
|
395
|
|
50184005
|
5
|
6-50 N·m
|
5-36 ft·lb
|
2 N·m
|
1 ft·lb
|
9x12
|
28
|
23
|
315
|
288
|
17,5
|
780
|
|
50184010
|
10
|
20-100 N·m
|
15-72,5 ft·lb
|
2.5 Nm
|
2.5 ft·lb
|
9x12
|
28
|
23
|
370
|
343
|
17,5
|
936
|
|
50184012
|
12
|
25-130 N·m
|
20-95 ft·lb
|
2.5 Nm
|
2.5 ft·lb
|
14x18
|
28
|
23
|
410
|
390
|
25
|
1074
|
|
50184020
|
20
|
40-200 N·m
|
30-145 ft·lb
|
5 N·m
|
5 ft·lb
|
14x18
|
28
|
23
|
455
|
435
|
25
|
1310
|
|
50184040
|
40
|
80-400 N·m
|
60-300 ft·lb
|
10 Nm
|
10 ft·lb
|
14x18
|
28
|
23
|
590
|
570
|
25
|
1540
|
|
50184065
|
65
|
130-650 N·m
|
100-480 ft·lb
|
20 Nm
|
20 ft·lb
|
14x18
|
30,6
|
25,6
|
875
|
855
|
25
|
3192
|
|
50184565
|
II/65
|
130-650 N·m
|
100-480 ft·lb
|
20 Nm
|
20 ft·lb
|
22x28
|
30,6
|
25,6
|
897
|
907
|
55
|
4104
|
|
50584005
|
a/5
|
6-50 N·m
|
50-440 in·lb
|
2 N·m
|
10 in·lb
|
9x12
|
28
|
23
|
315
|
288
|
17,5
|
780
|
|
50584010
|
a/10
|
20-100 N·m
|
180-880 in·lb
|
2.5 N·m
|
20 in·lb
|
9x12
|
28
|
23
|
370
|
343
|
17,5
|
934
|
|
50584012
|
a/12
|
25-130 N·m
|
225-1150 in·lb
|
2.5 N·m
|
25 in·lb
|
14x18
|
28
|
23
|
410
|
390
|
25
|
1076
|
|
50584020
|
a/20
|
40-200 N·m
|
350-1750 in·lb
|
5 N·m
|
50 in·lb
|
14x18
|
28
|
23
|
455
|
435
|
25
|
1216
|
|
