數顯角度式扭力扳手713R系列
產品詳細介紹

-

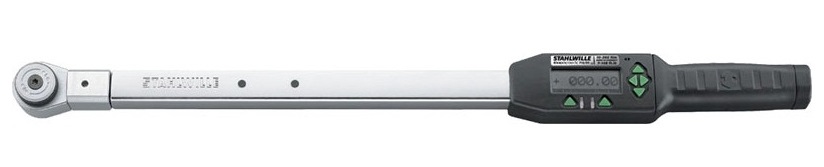

713R - Electronic angle-controlled torque wrenches Sensotork®

Indicating torque wrenches


·  simple, flexible operation thanks to operator guidance on large-format display

·  very broad measuring range (5% to 100% of rated value)

·  supplied with insert tool reversible ratchet, more insert tools

·  Quick Release safety lock

·  for clockwise and anticlockwise torquing

·  measurements independent of the point of application of force (sizes 6 and 20)

·  units of measurement: N·m, ft·lb, in·lb

·  advance warning points programmable for visual, tactile and acoustic signals

·  torque and angle are simultaneously visible

·  convenient angle measurement across a very wide angle range without a reference arm

·  nsert tool lengths can be individually set

·  maintenance friendly due to easy adjustment and automatic reminder of next calibration date

·  repeated joints can be collated to form a single menu-guided sequence

·  individual identification markings possible

·  password protection to prevent inadvertent changes and make the tool tamper-proof

·  meets requirements of DKD-R 3-7, Class 2

·  with certificate

·  in sturdy plastic case (size 40 in tough steel case)

·  supplied with three 1.5 V AA batteries. AA/LR6, 1.2 V NiMH rechargeable cells may also be used.

·  fully automated calibration (torque) using perfectControl calibrating unit No 7794-2. Adjustment without disassembly.

·  registered design

·  display deviation value for angle ± 1°

·  display deviation value ± 1%

Code No. Size 扭矩范圍 扭矩范圍
"
接口
mm
b
mm
h
mm
L
mm
凈重
g
重量
with box

96501606 6 3-60 Nm 2.5-44 ft.lb 3/8 9*12 50 33,5 378 856 1500g
96501620 20 10-200 Nm 7-148 ft.lb 1/2 14*18 50 33,5 608 1552 2430g
96501640 40 20-400 Nm 15-296 ft.lb 3/4 14*18
50 33,5 838 2332 5555g
