達威力Stahlwille可交換頭可調(diào)式扭力扳手-730系列

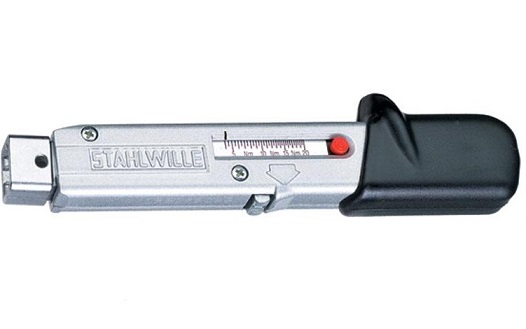

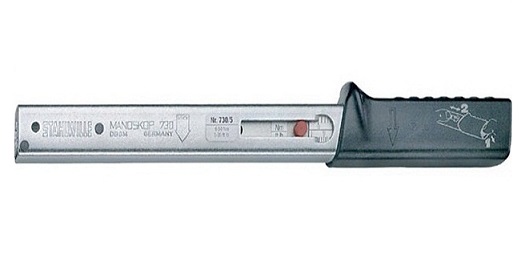

Service MANOSKOP® 730 Series
· click-type
· mount for interchangeable insert/shell tools
· QuickRelease safety lock (sizes 5-65)
· rapid setting (sizes 2-65)
· dual stop signal
· twin scales N·m/ft·lb and N·m/in·lb (sizes 5-80)
· the measuring element is only under load while force is being applied, no need for manual reset to zero
· can be applied for either clockwise or anticlockwise tightening by turning the inserts over
· any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
· calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
with certificate
· display deviation value ± 4%
730 - Basic wrenches with tool carrier for insert tools
|
Code
|
Size
|
扭矩范圍(公制)
|
扭矩范圍(英制)
|
分刻度
|
分刻度
|
方頭
mm
|
b
mm
|
h
mm
|
L
mm
|
LF
mm
|
SF
mm
|
重量
g
|
|
|
50180005
|
5
|
6-50 N m
|
5-36 ft.lb
|
2 N m
|
1 ft.lb
|
9*12
|
28
|
23
|
315
|
288
|
17.5
|
805
|
|
|
50180010
|
10
|
20-100 N m
|
15-72,5 ft.lb
|
2,5 N m
|
2,5 ft.lb
|
9*12
|
28
|
23
|
370
|
343
|
17.5
|
965
|
|
|
50180012
|
12
|
25-130 N m
|
20-95 ft.lb
|
2,5 N m
|
2,5 ft.lb
|
14*18
|
28
|
23
|
410
|
390
|
25
|
1100
|
|
|
50180020
|
20
|
40-200 N m
|
30-145 ft.lb
|
5 N m
|
5 ft.lb
|
14*18
|
28
|
23
|
455
|
435
|
25
|
1250
|
|
|
50180040
|
40
|
80-400 N m
|
60-300 ft.lb
|
10 N m
|
10 ft.lb
|
14*18
|
28
|
23
|
590
|
570
|
25
|
1880
|
|
|
50180065
|
65*
|
130-650 N m
|
100-480 ft.lb
|
20 N m
|
20 ft.lb
|
14*18
|
30.6
|
25.6
|
875
|
855
|
25
|
3280
|
|
|
50181565
|
II/65*
|
130-650 N m
|
100-480 ft.lb
|
20 N m
|
20 ft.lb
|
22*28
|
30.6
|
25.6
|
897
|
907
|
55
|
3280
|
|
|
50580005
|
a/5
|
6-50 N m
|
50-440 in.lb
|
2 N m
|
10 in.lb
|
9*12
|
28
|
23
|
315
|
288
|
17.5
|
805
|
|
|
50580010
|
a/10
|
20-100 N m
|
180-880 in.lb
|
2.5 N m
|
20 in.lb
|
9*12
|
28
|
23
|
370
|
343
|
17,5
|
965
|
|
|
50580012
|
a/12
|
25-130 N m
|
225-1150 in.lb
|
2.5 N m
|
25 in.lb
|
14*18
|
28
|
23
|
410
|
390
|
25
|
1100
|
|
|
50580020
|
a/20
|
40-200 N m
|
350-1750 in.lb
|
5 N m
|
50 in.lb
|
14*18
|
28
|
23
|
455
|
435
|
25
|
1250
|
|
|
* recommended ratchet insert tool No 735/40HD
|
730/80 - Basic wrench with tool carrier for shell tools
|
Code
|
Size
|
扭矩范圍公制
|
扭矩范圍英制
|
分刻度
|
分刻度
|
接頭
mm
|
b
mm
|
h
mm
|
L
mm
|
LF
mm
|
SF
mm
|
重量
g
|
|
|
50180080
|
80
|
160-800 Nm
|
120-600ft.lb
|
20 Nm
|
20 ft.lb
|
22*28
|
46
|
43
|
970
|
990
|
195
|
5377
|
Use shell adaptor No 7370/80 to make 14 x 18 mm insert tools fit.
|
